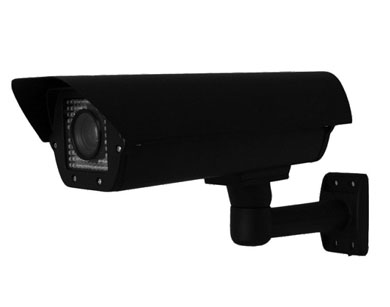

License Plate Recognition camera, LPR camera
Automatic Number Plate Recognition , ANPR camera
Optional modules:
B/W(Black and White) module optional

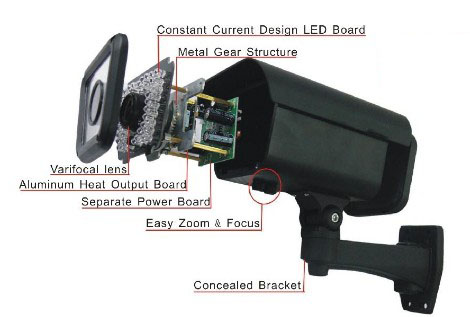

Features:
1.550TVL,1/3"760H CCD
2.10~40mm Vari-focal auto iris lens
3.Separate glass: no IR diffusion and fog
4.Viewing angle: horizontal:8º to 33º
5.Available IR distance: 5-30M
6.Designed for traffic surveillance
7.Clearly capture the number plate when car speed is 180km/h(112MPH)
8.Constant Current Circuit Design to make sure the lifespan or IR LED
9.Designed for Traffic Surveillance
10.Designed to be able to grab an image of a number plate at speeds up to 112 MPH and at a distance of up to 30 metres
Specification:
| Models |
PT-LR103 |
| Type |
Color/Monochrome |
| Signal System |
NTSC/PAL |
| Pick Up Device |
1/3"760H CCD |
| Picture Elements |
NTSC:811H*508V ,PAL:795H*596V |
| Resolution |
550 TVL |
| Min Illumination |
0Lux (60 Pieces IR LED ON) |
| Vertical Frequency |
NTSC:60Hz ,PAL:50Hz |
| Horizontal Frequency |
NTSC:15.734KHz ,PAL:15.625KHz |
| Clock Frequency |
NTSC:28.636MHz ,PAL:28.375MHz |
| Scanning System |
2:1 Interlace |
| S/N Ratio |
>50dB |
| Electronic Shutter |
Fixed |
| Lens |
10-40mm Varifocal Auto Iris IR Lens |
| GAMMA |
0.45 |
| Video Out-put |
1V p-p,75o |
| Power Supply |
DC12V+ 10% |
| Current Consumption |
1300mA (MAX) |
| Recommend Working Distance |
5-30M (16.39~98.36ft) |

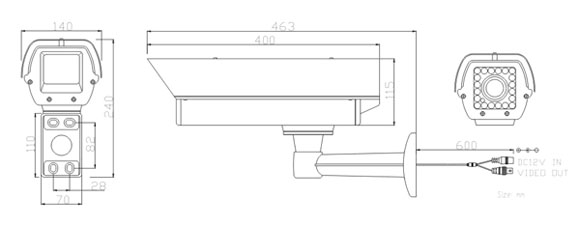

| Dimension |
463*240*140mm (18.22"*9.44"*5.51") |
| Weight |
2500g |
| Storage Temperature |
-30 to 60 ºC |
| Operating Temperature |
-10 to 40 ºC |
