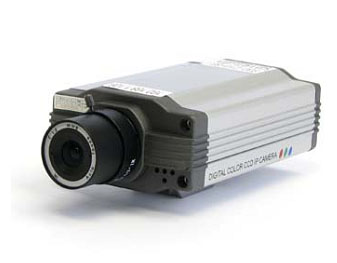

PTCCTV is a R&D-oriented manufacturer & supplier of standalone DVR, IP camera, IP video server, CCTV camera, wireless surveillance systems and security accessories in Shenzhen ,China .
Features:
2.0 Mega Pixel Resolution Version
Image Sensor 1/3 inch CMOS,
D1 Resolution Image, Remote/ Local Monitoring and Recording, Snapshot, OSD, Multi-recording method, Optimal Audio/ Video Synchronization.
Support all popular network protocol, IE browse Preview,10 viewers can directly access the camera simultaneously
Specification:
|
Model |
PT-P210M |
|
Software Management |
64 pictures of client software. Search and distribute IP address |
|
Security |
3 Levels: administrator, user and guest. |
|
Alarm/ Recording |
Motion detection, Email when alarm ,Mobile Phone Surveillance Schedule, Manual, Alarm Recording |
|
Pan/Tilt Control |
RS485 |
|
Browser |
Windows XP/Vista Version |
|
IE6.0 Version above |
|
NET4.5 Version above |
|
Hardware |
CPU |
32Bit RSIC Embedded Processor |
|
OS |
Embedded Linux system |
|
Network |
Protocol |
TCP/IP, HTTP, ARP, RARP, TCP, ICMP, DHCP, PPPOE, DDNS, SMTP, RTSP etc. |
|
Interface |
RJ45 10/ 100M Ethernet |
|
Video |
Compression |
H.264 |
|
Frame Rate |
10-30fps (D1 Resolution) |
|
Resolution |
HD: 1920*1080(15fps) |
|
HD: 1280*1080 (25fps) |
|
D1: 720*576 (25fps) |
|
Input |
1Ch |
|
Output |
1Ch |
|
Audio |
Compression |
G. 726 |
|
Input |
Built-in MIC / Two-way Audio |
|
CCD |
Image Sensor |
1/3 2 Mega Pixels CMOS |
|
S/ N Ratio |
>48db (AGC OFF) |
|
Min Illumination |
0.5 LUX |
|
Lens Interface |
CS/ C |
|
White Balance |
Auto |
|
BLC |
Auto |
|
Power |
Power over Ethernet (POE IEEE 802.3af ) , DC12V 1A(optional) |
|
Dimension |
157*81*61 (mm) |
|
Weight |
0.712 KG | More Mega Pixel IP camera |
