China IP camera manufacturer-video server supplier-network cameras-CCTV DVR

Features:

H.264 video compression format.
G.726 Audio compression format, support two-way audio.
Built-in Web server, IE client support, it fully supports IE monitoring, configuration and updating, so that it is characterized by simple and convenient operation.
Max.30fps image compression ,Max.30fps image transmission.
D1, CIF, FIELD, QCIF Resolution .
User management supports the three-level password.
Support mobile phone monitor.
Support Motion detection, date, time, event trigger. and watermark.
Support Watchdog, DDNS,TCP/IP,RTSP, ARP, RARP, ICMP, DHCP, FTP, HTTP,SMTP protocol and RTSP for quicktime / VLC player .
support SD card storage and image snapping; SD2.0 standard, maximum storage32G,snap shot and video recording.
Remote Self-contained FTP server & E-mail sending function.
Free multi-screen management software.

Specification:

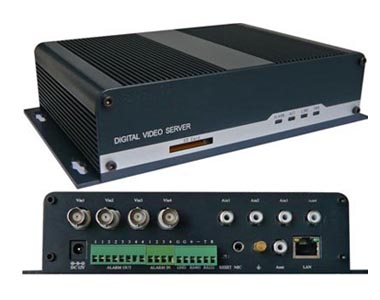

Models	PT-S504N
Processor	Hi3512
Video compression	H.264 Main Profile@Level 3.0 / MJPEG
Dual Stream	Support
Video Input	4 channel
Definition	D1
Video Frame Rate	not real time( 15fps @ D1 )
Video Bitrate	32Kbps--16Mbps
Audio Compression	G.726
Audio Input	4 channel
Audio Talkback	Hi3512
Audio Output	1 channel RCA interface, linear output
Title OSD	Supports channel name, date, and video stream information overlay; OSD location is adjustable
SD card	Supports Viedo storage and image snapping; SD2.0 standard, maximum storage 32G
Control Interface	1 RS232 and 1 RS485 Interface
Alarm Input	4-channel input,Normally Open/Normally Close modes adjustable
Alarm Output	4-channel output, 120VAC 1A/24VDC 1A
E-mail Alarm	Support
FTP Protocol	Support
RTSP Protocol	Support
Mobile Monitor	Support
Working Temperature	-10 to 55 centigrade degree
Working Humidity	10 - 85%
Power Input	DC12V/1.0A
Power Consumption	< 5W
Dimension	205mm * 50mm * 150mm
