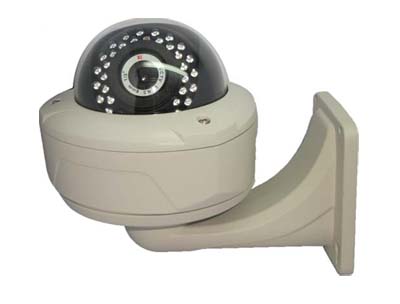

| Vandal proof Dome IR CCTV Camera |
|
|
| Model:PT-C208
30 pcs IR LED,IR distance 30m
Easy for installation, nice streamline design
IR ON 0Lux
3.6mm/6mm/8mm fixed lens and 4-9mm manual vari-focal lens optional
|
|
|
| detail: |
|
Optional modules:
420TVL/480TVL/520TVL/600TVL/650TVL/700TVL module optional
3.6mm/6mm/8mm lens module optional
4-9mm manual vari-focal lens optional
Features:
1.Super Sony CCD,Color Vandal Proof IR Dome Camera
2.30 pcs IR LED,IR distance 30m
3.3.6mm/6mm/8mm fixed lens and 4-9mm manual vari-focal lens optional
4.Horizontal resolution 420TVL,/480TVL/520TVL,/600TVL/650TVL/700TVL optional
Specification:
| Models |
PT-C208 |
| Image Sensor |
1/3"SONY CCD |
| Pixels |
PAL:512Hx 582V; NTSC:512Hx 492V |
| Scanning System |
PAL/NTSC |
| Horizontal Resolution |
420TVL (480TVL,520TVL, 600TVL,650TVL/700TVL optional) |
| Minimum Illumination |
0LUX/IR ON |
| S/N Ratio |
=48dB |
| Video Output |
1.0Vp-p/75 |
| AGC |
Auto |
| White Balance |
Auto |
| Backlight Compensation |
Auto |
| Exposure Mode |
EE |
| Electronic Shutter |
PAL:1/50-- 1/100000sec,NTSC: 1/60--1/100000sec |
| Gamma Correction |
0.45 |
| Sync.System |
Internal Synchronization |
| Lens |
3.6mm/6mm/8mm fixed lens and 4-9mm varifocal lens optional |
| IR View Distance |
30m |
| Power Supply |
12V 1A |
| Operation Temperature |
-10 degree to 50 degree |
