Features:
1.Standard 16CH real time D1 recording.
2.Resolution/frame rate/image quality adjustable per channel
3.Up to 4CH D1 or full channel CIF simultaneously playback with audio
4.VGA 1280*1024, HDMI 1080p video out
5.Programmable display/spot out/alarm mode
6.Programmable recording mode with versatile options
7.Privacy mask\digital zoom\snapshot
8.Strong log function supported
9.Powerful remote configuration and maintenance function
10.Perfect support of IPhone, Blackberry, Google phone, Symbian and Windows mobile
11.Express backup
Specification:
| Models |

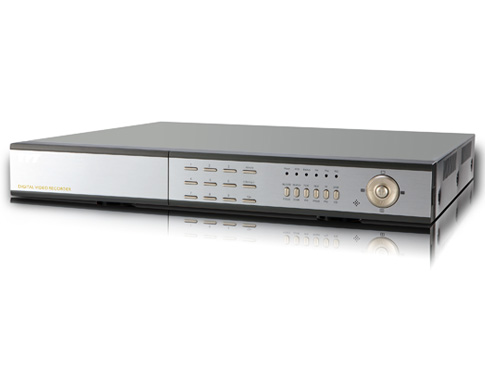

PT-616HE |
| Compression Format |
Standard H.264 Baseline |
| Video |
Input |
Composit:1.0Vp-p/75O,BNC*16 |
| Output |
Composit:1.0Vp-p/75O,BNC*2
High Resolution VGA :1280*1024
HMDI :1080P(1920*1080 )
|
| Record Resolution |
704*576 (PAL); 704*480 (NTSC) |
| Frame Rate |
Display |
400fps(PAL) 480fps(NTSC) |
| Record |
400fps(PAL) 480fps(NTSC) |
| Playback |
100fps(PAL),120fps(NTSC) |
| Audio |
Input |
RCA*4 |
| Output |
RCA*1 |
| Alarm |
Input |
16CH |
| Output |
1CH |
| Recording Mode |
Manual,time,motion,sensor |
| Pentaplex |
Preview,record, playback, backup, remote access |
| Network Interface |
RJ45 10M/100M/1000M Ethernet Adjustable |
| PTZ |
YES?128presets,32 cruises |
| IR controller |
YES |
| Communication Interface |
RS485 * 2, USB2.0 * 2 |
| HDD |
SATA *3 |
| Power Supply |
12V |
| Dimension |
W430 x D400 x H55mm |
