20x optical zoom
4.9-94.0mm lens
H.264 and MJPEG dual-stream encoding and JPEG image capture
1080P resolution
WDR, Day/Night(ICR), DNR (2D&3D),Auto iris, Auto focus, AWB, AGC,BLC
Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
Max 240 degree/s pan speed, 360 degree endless pan rotation
Up to 255 presets, 5 auto scan, 8 tour, 5 pattern
Built-in 7/2 alarm in/out
Support intelligent 3D positioning with DH-SD protocol
SD memory, IP66
IR LEDs up to 100m in darkness
Support ONVIF

Specification:

Models	PT-P208MHR
Sensor	1/3"CMOS
Effective Pixels	1920(H) *1080(V), 2MP
Scanning System	Progressive
Electronic Shutter Speed	PAL:1/3--1/10000s NTSC:1/4--1/10000s
Min.Illumination	Color: 0.1Lux/F1.6 B/W: 0.01Lux/F1.6
S/N Ratio	More than 50dB
Video Output	BNC(1.0Vp-p/75O), PAL / NTSC
Max. IR LEDs Length	100m
Day/Night	Auto(ICR) / Color / B/W
Backlight Compensation	BLC / HLC / WDR
White Balance	Auto, ATW, Indoor, Outdoor, Manual
Gain Control	Auto / Manual
Noise Reduction	2D / 3D
privacy masking	Up to 24 areas
Focal Length	4.7mm --94.0mm (20x Optical zoom)
Digital Zoom	12x
Max Aperture	F1.6--F3.5
Focus Control	Auto / Manual
Angle of View	H: 55.4 degree--2.9 degree
Close Focus Distance	10mm~ 800mm
Pan/Tilt Range	Pan: 0 degree -- 360 degreeendless; Tilt: -2 degree-- 90 degree, auto flip 180 degree
Manual Control Speed	Pan: 0.1 degree --160 degree/s; Tilt: 0.1 degree--120 degree/s
Preset Speed	Pan: 240 degree /s; Tilt: 200 degree /s
Preset	80(DH-SD), 255(Pelco-P/D)
PTZ Mode	5 Pattern, 8 Tour, Auto Pan, Auto Scan
Speed Setup	Human-oriented focal length/ speed adaptation
Power up Action	Auto restore to previous PTZ and lens status after power failure
Idle Motion	Activate Preset/Pan/Scan/Tour/Pattern if there is no command in the specified period
Time Task	Auto activation of Preset/Pan/Scan/Tour/Pattern by preset-time
Protocol	DH-SD,;Pelco-P/D (Auto recognition)<, /SPAN>
Compression	H.264 / MJPEG
Resolution	1080P(1920* 1080) / 720P(1280*720) D1(704*576/704*480) / CIF(352*288/352*240)
Main Stream	1080P / 720P(1 -- 25/30fps)
Sub Stream	D1/CIF(1 -- 25/30fps)
Bit Rate	H.264: 56K --8192Kbps, MJPEG: 56K -- 20480Kbps
Compression	G.711a / G.711u(32kbps) / PCM(128kbps)
Interface	1/1 channel In/Out
Ethernet	RJ-45 (10/100Base-T)
Protocol	IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
ONVIF	ONVIF Ver. 2.0 conformance
Max. User Access	20 users
Smart Phone	iPhone, iPad, Android, Windows Phone
Memory Slot	Micro SD, Max 32GB
RS485	1
Alarm	7/2 channel In/Out
Power Supply	AC 24V/3A (+-10%) / DC12V optional
AC 24V/3A (+-10%) / DC12V optional	17W, 35W(Heater on)
Working Temperature	-30ºC ~ 60ºC / Less than 90% RH
Ingress Protection	IP66
Weight	7.0kg

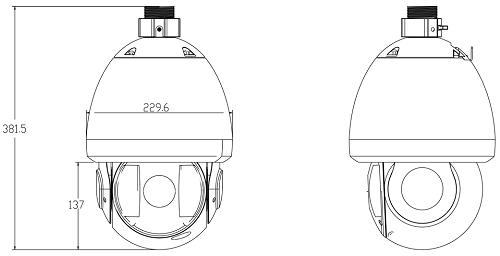

Package Dimension	229.6(mm) x381.5(mm)
Package Weight	7.0KG
