| Series |
PT-NV800 Series |
| Model Number |

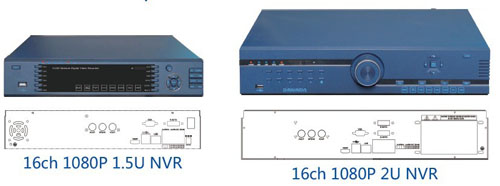

16ch 1080P 1.5U
PT-NV816A |

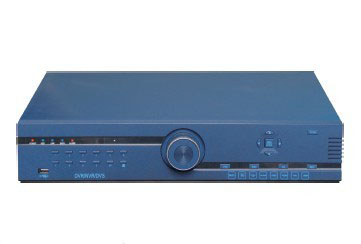

16ch 1080P 2U
PT-NV816B |
| Chassis |
Standard 1.5U Chassis |
Standard 2U Chassis |
| Operating System |
Embedded LINUX operating system |
| Image Code Standard H.264 |
H.264/MPEG4 AVC |
| Image Code Control |
Image,code,quality,adjustable,variable
bitrate,and,constant1bitrate,optional |
| Dual Stream |
Each channel can set main stream and sub stream |
| Audio Compression |
G.711 |
| Video Standard |
1080P(1920*1080) 30fps/second |
| Monitoring Image Quality |
1080P(1920*1080) |
| Recording Playback Quality |
16ch 1080P |
| Recording Playback |
Support 4ch playback simultaneously |
| Image Motion Detection |
Each screen can set mutiple detection areas and set 6-level sensitivity |
| Region Cover |
Every channel can set 4 cover regions |
| Voice Talkback |
Two-way voice talkback |
| Recording Mode |
Support manual , auto, dynamic detection, alarm trigger record mode |
| Backup Way |
Support U disk, USB mobile HDD, USB DVD-RW, network storage and backup |
| Recording Storage |
Local HDD |
| Network Video Input |
16ch |
| Chassis |
16ch |
| Video Output |
1ch VGA+1ch 720/1080P |
| Audio Output |
1ch RCA |
| Alarm Input |
16ch |
| Alarm Output |
16ch |
| Network Port |
1 RJ45,10M/100M/1000M self-adaptive LAN port |
| Wireless Port |
3G, WIFI |
| RS485 Port |
Full duplex standard 485 port |
| USB Port |
3 USB 2.0 ports |
| Local Login |
User name and password |
| HDD |
2 SATA ports+1 E-SATA ports |
8 SA TA+2 E-SATA ports |
| Power Supply |
DC12V5A |
AC110-240V ---ATX 300W 50-60 Hz |
| Mobile Surveillance |
Support (iPhone, Windows Mobile, BlackBerry, Symbian, Android) smart phone |
| Power Consum ption |
<=20W(without HDD) |
<=40W(without HDD) |
| Working Temperature |
-10 oC to + 55 oC |
| Working Humidity |
10%-90% |
| Dimension |
Equipment: 350mm*240mm*70mm,
packing:409mm*365mm*129mm |
Equipment: 440mm*450mm*90mm, packing:539mm* 530mm*225mm |
| Weight(without HDD) |
N.W.:1.7Kg,with packing: 2.89Kg |
N.W.:6.58Kg,with packing : 9.5Kg |
| Carton |
5pcs/carton, weight: 15.22Kg,
size: 675mm*425mm*385mm |
2pcs/carton, weight: 20.45Kg,
size: 555mm*545mm*470mm |
| Installation Way |
Desktop installation |
