Optional modules:
POE module optional

Features:

H.264 Main Profile @level 3
2.0 Megapixel 1600*1200 Resolution
Dual H.264 Stream, resolution, frame rate, bit rate adjustable
Support RTSP Compatible with VLC Media Player
Onvif Compliant, Support Milestone/Axxon/NUUO/Geovision
Support Two Way Audio
Build in Motion Detection
1/4" CMOS Sensor Progressive Scan
2.8-12 mm Mega Pixel Vari-focal Lens included
F5 30pcs IR LED, IR Range 15 m
Metal Material Housing, IP66 Rated
Waterproof & Vandal proof , Indoor & Outdoor Use
Support Power over Ethernet (IEEE 802.3af) optional
Support Micro SD Card (SDHC up to 32GB) Optional
Support iPhone/iPad/Android Mobile
Support Intelligent Video Analytics Software

Specification:

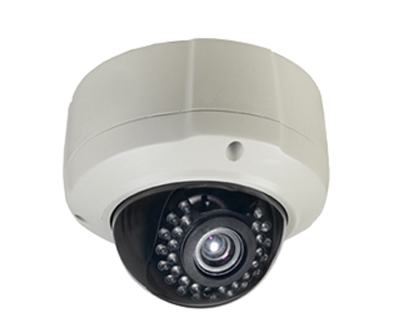

Models	PT-P205MA
Sensor	1/4" Progressive Scan CMOS OV2643
Effective Pixels	1600(H)*1200(V)
Min.Illumination	1250mv/lux-sec
Day/Night	Auto,dual IR-Cut filter
IR LED	F5 30pcs IR Leds IR Range 15 m (49.21 feet)
Max S/N Ratio	39dB
Electronic Shutter	Rolling Shutter
Interfaces	Board Mount M12.5 (Interchangeable Lens)
Lens	Fixed Iris, Manual Focus
Focal Length	Vari-Focal, f2.8-12 mm / F1.6
H View Angle	75.6 degree  to 20.5 degree
Audio Talkback	1 channel power MIC input, External access, AV interface
Audio Output	1 channel power speaker output, AV interface
Storage Interface	Micro SD (TF) Card supports video storage and image snapping;  SD2.0 standard,maximum storage 32G
Lan	10/100M BASE-TX,RJ-45 connector
RS485	Default as RS485 port for PTZ,  1ch Alarm input or 1ch alarm output optional
Video Compression	H.264 Main Profile; MJPEG/JPEG Baseline
Main Stream	UXGA (1600*1200) 1-15fps, HD 720P (1280*720) 1-25fps
Sub Stream	CIF(352*288)/QVGA(320*240)/QCIF(176*144) 1-30fps
Video Bitrate	32Kbps--4Mbps,Supports CBR/VBR
Title OSD	Supports channel name, date, and video stream information overlay; OSD location is adjustable
Privacy Mask	4 configurable regions
Image Orientation	image flip and mirror
Auto Image Control Functions	Auto Exposure Control (AEC);  Auto White Blance (AWB); Auto Band Filter (ABF) Auto Black Level Calibration (ABLC)
Image Controls	Color saturation, hue, gamma,  sharpness (edge enhancement), lens correction,  defective pixel canceling, and noise canceling
Audio Compression	G.711
Two Way Audio	Support
Data storage	Video and Image
Recording	Recording set up to record by motion trigger, alarm trigger, manual, or schedule
Alarm Output	FTP,E-mail, Explorer, Software
Network protocol	TCP/IP,UDP,RTP,RTSP,RTCP,HTTP, DNS,DDNS,DHCP,NTP,SMTP,UPNP
Wireless protocols(-W)	802.11b/g/n, 150Mbps, Supports WEP,WPA,WPA2("-WiFi" model supports)
ONVIF protocols	Support 1.02 version
Remote View	PC:IE 6.0 or later, max 10 users
	Mobile Phone:iPhone, Android, Blackberry Mobile
Environmental Casing	Metal Housing, Outdoor Use
Installation	Ceiling Mount Screws Included, Wall Mount Brackets Optional
Operating Temperature	-20 degree to 50 degree for DC 12V
Operating Humidity	0% -85% RH
Power	DC12V 2.0A
POE	POE Class 3 IEEE802.3af, optional for "-POE" Model
Power Consumption	9W(MAX)

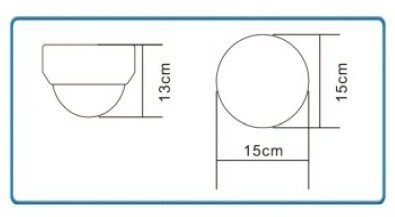

Dimension	130 mm (H) * F150 mm (5.51" x 5.90" x5.90")
Weight	1 KG (2.20 lb )
Package Dimension	234(L) * 164(W) * 153(H) mm
Package Weight	1.5KG (3.30lb)
