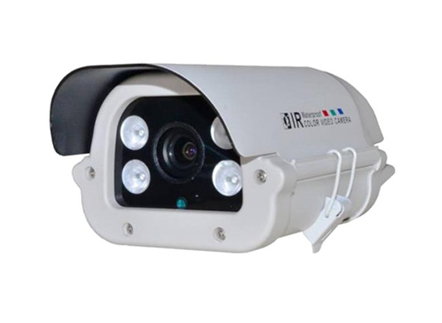

| Weatherproof LED Array Outdoor CCTV Camera |
|
|
| Model:PT-R111LA
4pcs high power third-generation LED array
IR distance 30-50m in darkness
Built-in Fan and Heater
IP66 standard |
|
|
| detail: |
|
Optional modules:
420TVL/480TVL/520TVL/600TVL/650TVL/700TVL module optional
Auto Iris 3.5-8mm Varifocal Zoom Lens module optional
Auto Iris 6-36mm Varifocal Zoom Lens module optional
Auto Iris 5-50mm Varifocal Zoom Lens module optional
Features:
Auto Iris 3.5-8mm/6-36mm/5-50mm Varifocal Zoom Lens (enternal Adjustable) .
Weatherproof Outdoor CCTV camera
4pcs third-generation light source chip array,50m IR Camera.
With Outdoor Housing,IP66 standard, build-in 110V-220V power supply .
Built-in Fan & heater & power adaptor.
Specification:
| Models |
PT-R111LA |
| Image Sensor |
Color 1/3 Sony CCD |
| Resolution |
420TVL/480TVL/520TVL/600TVL/650TVL/700TVL optional |
| Pixels |
NTSC:811(H )*508(V) PAL:795(H )*596(V) |
| TV System |
PAL/NTSC |
| Sync System |
Internal Synchronization |
| Min. Illuminatio |
0.2lux/F1.2;( 0 Lux with IR on) |
| Infrared Distance |
30-50 m |
| S/N Ratio |
More than 48dB(AGC off) |
| Ray Features |
0.45 |
| Video Output |
1 Vp-p75 ohm |
| Electronic Shutter |
NTSC=1/60-1/100,000 seconds; PAL=1/50-1/100,000 seconds |
| IR |
4pcs third-generation light source chip array |
| Lens |
3.5-8mm/6-36mm/5-50mm varifocal zoom lens |
| Power Supply |
DC12V 500 mA |
| Weight |
2500g |
| Dimension |
143x85x83(mm) |
| Operation temp |
-20 to 60 centigrade degree |
| Storage temp |
-30 to 70 centigrade degree |
